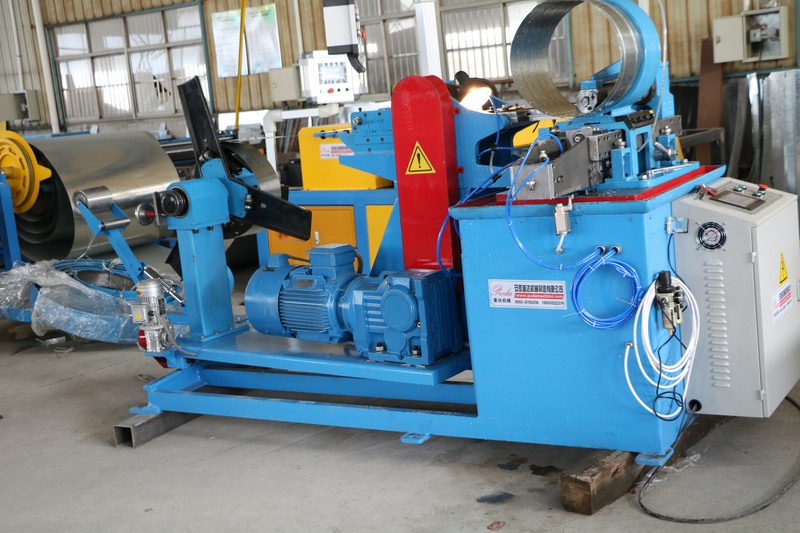

Spiral Tubeformer mold type with one mold one spiral tube diameter best spiral duct machine supplied by Preda Machine
This mould type spiral tubeformer is designed to automatically form spiral duct for HVAC round duct progress!
It is an advanced spiral duct machine with more reliable performance due to its fixed mould tune machine design!
Each mould will form spiral tube of one fixed diameter.
This spiral tube machine is of higher durability and the spiral tubes formed are of better air tightness for sure!
| | | Max working speed (m/min)
| | | | | |
| | | | | | | | |
Basic Configuratio
1.One main motor in 11KW
2.Three inner side motors
3.Electronic box with screen-touch PLC
4.Electric coil cradle
5.Slitting station speicaly designed for spiral tube machine
6.Four spiral tube forming dies from 0.5mm to 1.2mm
More details of Preda Machine Spiral Tubefomer,
Brief Introduction,
This spirla tubeformer is designed to automatically forming spiral duct for HVAC duct projects!
It is an advanced spiral duct line with much more reliable performance due to its fixed mold design!
Each mold will form spiral tube of one fixed mold!
Specification,
MOLD TYPE Spiral tube machine:
PD-1500 Diameter: 100-1500mm Thickness:0.5-1.2mm Uncoiler capacity: 1200Kg
Steel width: 137mm Feeding speed: 0-27m/min. Main power: 11Kw Total power: 12Kw
Dimension:5500*1800*1600 weight: 2000KG
PLC system
Mold: Standard five sets of molds capable between 100-500mm
HS CODE:8462299000
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging |
| According to size of the machines |
| According to the weight of the machines |
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Packaging |
| According to the number of machines |
| According to the number of machines |
|
If the number of machines exported is relatively large, we will arrange the container to be packaged and exported to some European countries. Container packaging will also be preferred in view of transportation issues. |
