1. The main three rollers and curvature adjustment of Preda Machine Rolling Pipe Bending Machineis drove by hydraulic system, which with stability performance.
2. Preda Machine Rolling Pipe Bending Machinea dopt grating ruler for curvature range adjustment, which with high precision. Preda Machine Pipe Bending Machine is allowed to adjust curvature either by two rollers meanwhile, or by single roller according to set, which is easy to operate.

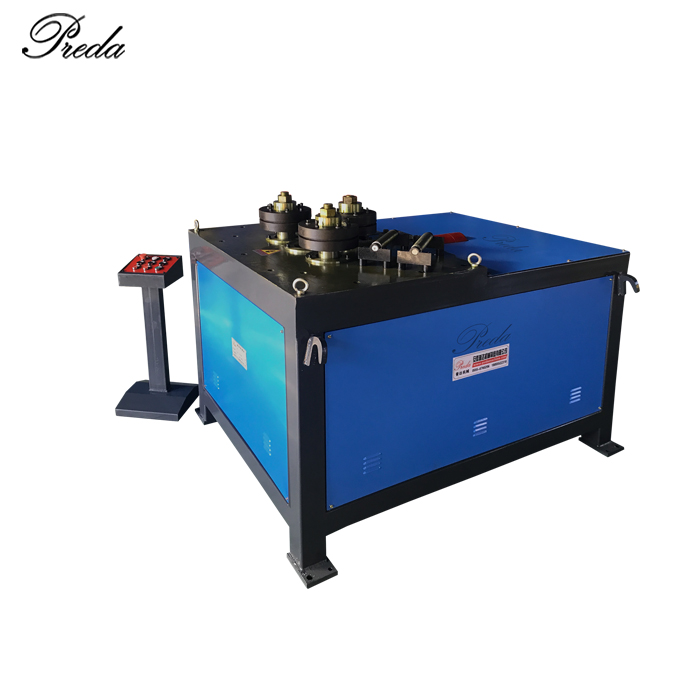

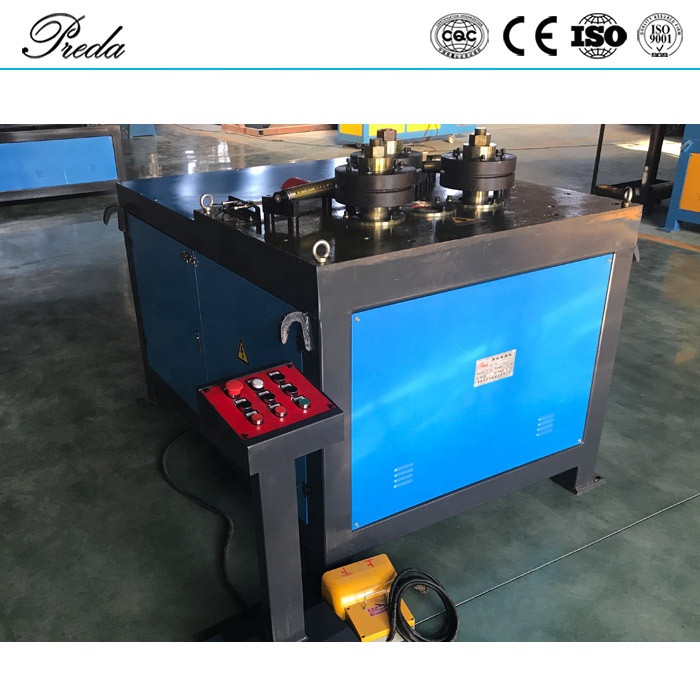

3. Preda Machine Horizontal Profile Bender, Horizontal Section Bender allow to process varies of metal profile, such as angle iron, flat steel, round pipe and other material of abnormal section profile, through change the groove of Rolling dies;
4. Preda Machine Horizontal Profile Bender, Horizontal Section Bender is able to bend large size profile, while no need to make super size Rolling die.
Model
YJY-50
YJY-63
WS-80
WS-100
Lield limit(mm)
≤245
≤245
≤245
≤245
Max capacity(mm)
L30*3
L40*4
L50*5
L60*6
L80*8
L100*10
Min diameter(mm)
350
350
600
650
Main power(kw)
3
4
4
7.5
Oil power(kw)
1.5
1.5
3
3
Reducer model
135A
B135
250
300
Weight(kg)
550
600
1100
1300
Dimensions(mm) L*W*H
900*900*1020
900*900*1020
1200*1000*1100
1300*1280*1100
YJY-50/63 series
The hydraulic angle iron rolling machinbe is applicabled to the angle iron of 3#/4#/5#/6#, and flat iron below 5mm.
WS-80/100 series
The hydraulic angle iron rolling machinbe is applicabled to the angle iron of 8#/10#, and flat iron below 10mm.
Main Features

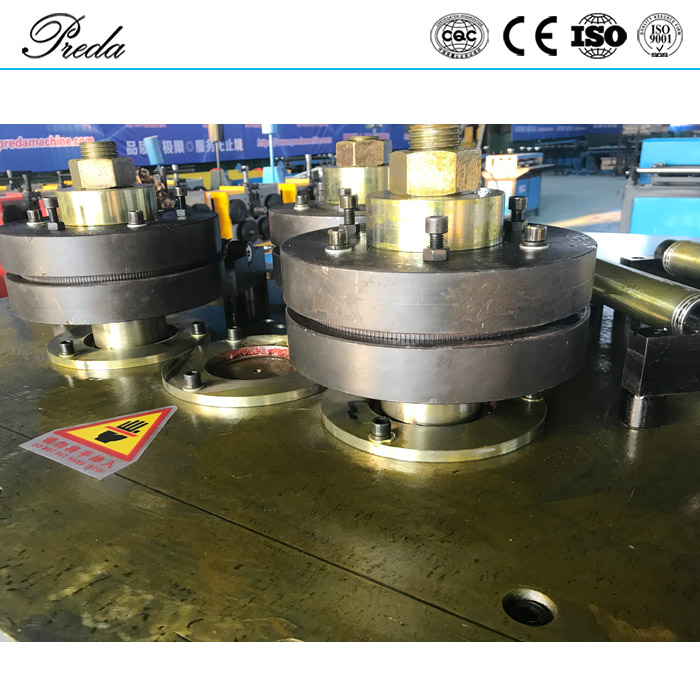

Rollers are changeable according to requirements;
Can roll angle iron, band iron, round pipe, channels and square tube etc.
The rollers' clearance are adjustable while the three rollers working which will save material.
Certifications
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
According to the size of the machines
Weight
According to the weight of the machines
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
According to the number of machines
Weight
According to the number of machines
Packaging Details
If the number of machines exported is relatively large, we will arrange the container to be packaged and exported to some European countries. Container packaging will also be preferred in view of transportation issues.
FAQ
1.Are you factory or foreign trade company? We are the manufacturer and do our own exporting team for more than 15 years' experience.
2.How can we operate the machine? Our machines are very easy to operate.We have detailed installation and operating instructions attached. We will arrange our engineers available to service machinery overseas for HVAC duct production lines.
3.How long warranty can you provide? Our machine warranty is one year and life time service after sales.
4. What are your payment terms? We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.
