Products Description

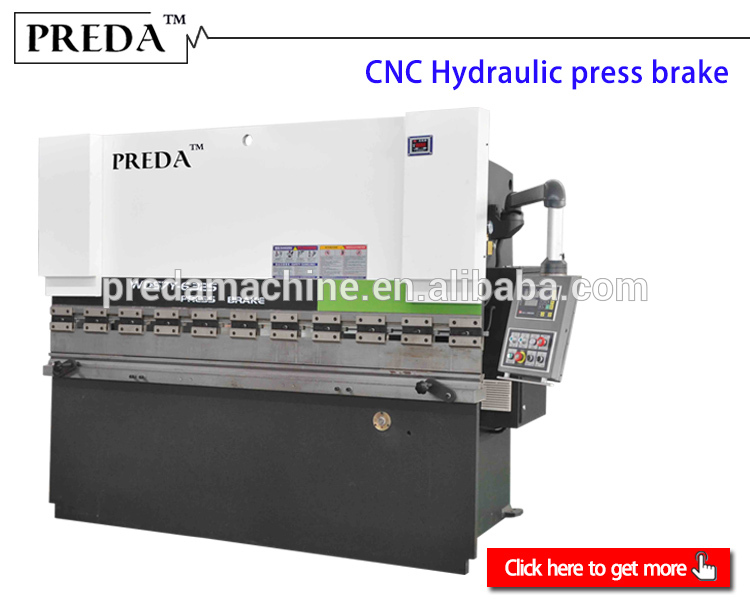

The hydraulic bending machine comprises a bracket, a worktable and a clamping plate, the worktable is placed on the bracket, the worktable is composed of a base and a pressure plate, and the base is connected with the clamping plate through a hinge, the base is composed of a seat shell, a coil and a cover plate, and the coil It is placed in the recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, and after the power is applied, the platen is attracted to the platen, thereby clamping the plate between the platen and the base. Thanks to the electromagnetic clamping, the pressure plate can be made into a variety of workpiece requirements, and the workpiece with the side walls can be processed.
| Model | Normal Pressure (KN) | Worktable length (mm) | Distance between holes (mm) | Depth of throat (mm) | Ram travel (mm) | Max. opening height (mm) | Main power (kw) | Weight (kg) | Overall dimension (LxWxH) mm |
| 40T/1600 | 400 | 1600 | 1150 | 230 | 100 | 320 | 5.5 | 2750 | 2200x1200x1910 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3000 | 2500x1200x1910 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3400 | 2500x1210x2000 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 2500x1300x2210 |
| 63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 3200x1300x2210 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 7.5 | 5700 | 2500x1400x2300 |
| 80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 7.5 | 6020 | 3200x1500x2300 |
| 80T/4000 | 800 | 4000 | 3000 | 320 | 100 | 350 | 7.5 | 7000 | 4000x1500x2300 |
| 100T/2500 | 1000 | 2500 | 2020 | 320 | 120/150 | 320/350 | 7.5/11 | 6000 | 2500x1600x2400 |
| 100T/3200 | 1000 | 3200 | 2600 | 320 | 120/150 | 370/400 | 7.5/11 | 6800 | 3200x1600x2600 |
| 100T/4000 | 1000 | 4000 | 3000 | 320 | 120/150 | 370/400 | 7.5/11 | 8400 | 4000x1600x2700 |
| 125T/3200 | 1250 | 3200 | 2580 | 320 | 120/150 | 370/400 | 7.5/11 | 7200 | 3200x1600x2600 |
| 125T/4000 | 1250 | 4000 | 3000 | 320 | 120/150 | 370/400 | 7.5/11 | 8800 | 4000x1600x2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 10500 | 3200x1700x2700 |
Main Features
(1) Hydraulic transmission, the oil cylinders at both ends of the machine are placed on the slider to directly drive the sliding work.
(2) It adopts mechanical block structure, which is stable and reliable.
(3) The slider stroke is maneuvered quickly, manually fine-tuned, and the counter is displayed.
(4) It adopts all-steel welded structure with sufficient strength and rigidity.
(5) The slider synchronization mechanism uses the torsion axis to force synchronization.
(6) Oblique wedge compensation mechanism to ensure high bending accuracy.
Main Configuration for Hydraulic Bending Machine series
(1) Estun E21 NC control system/ Delem DA41 CNC control system and other system from Preda.
(2) Powered Depth Y-axis & Back gauge X-axis.
(3) DELTA Inverter controlled back gauge/ Servo motor controlled back gauge.
(4) HIWIN Ball screws & Polished rod with 0.01/0.05mm accuracy.
(5) Plate Support Arms.
(6) Germany Bosch-Rexroth Hydraulic.
(7) Germany EMB Tubing connector.
(8) Germany Siemens Main Motor.
(9) Telemecanique/ Schneider Electrics.
(10) Hydraulic & Electrical overload protection.
(11) Top and Bottom Tooling (86°,R0.6mm)
(12) Manual Crowning system homogenizes bending.
