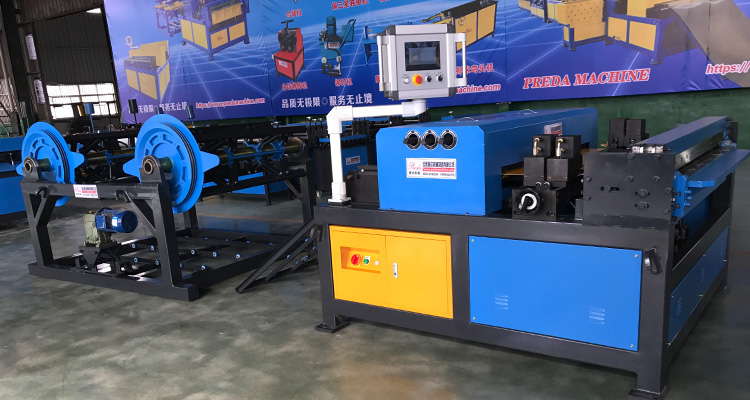

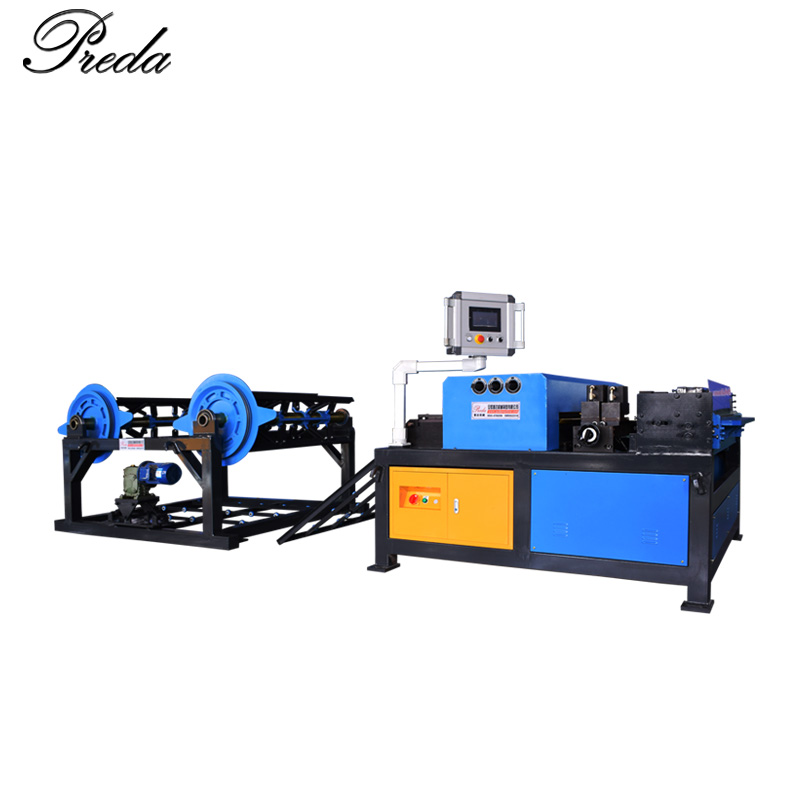

1.Electric decoilers (2 sets of rollers) driven by independent frequency controlled motors
2.Multi-functional main body with capability of leveling, beading, notching(capable of sharp notching, TDF notching) and plate shearing specially designed for duct auto line 3!
3. Mitsubishi computer controlling system and software
4. Mitsubishi and Siemens electric box and electrics
Model
Sheeting thickness (mm)
Max width (mm)
Max working speed (m/min)
weight of coil (T)
Dimension (mm) L*W*H
Power (kw)
Weight (T)
AML3-1300
0.5-1.2
1300
15
7
2300*1900*1350
7.5
3.5
AML3-1500
0.5-1.2
1500
15
7
2300*2100*1350
7.5
4
Main Import Configuration:
1) MITSUBISHI Display and PLC for Auto Duct Line 3.
2) MITSUBISHI Frequency Converter.
3) Taiwan High Temperature Resistant Tubing.
4) Taiwan high quality Pump.
Detailed Images
Machine Parts

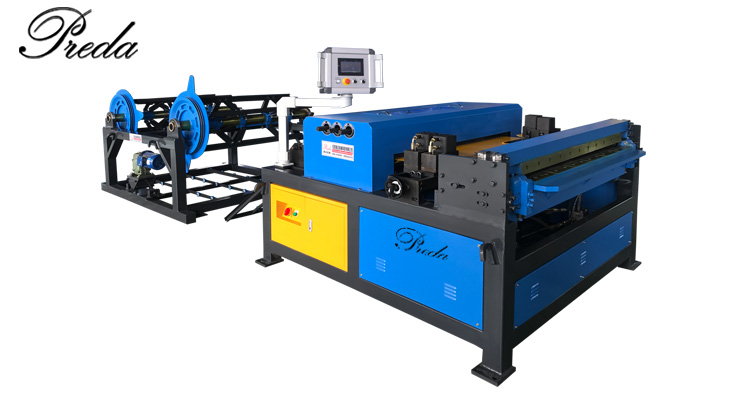

Name:Bending or Folding Station
Material: 9CrSi
Features: Sheet bending
Used for folding HVAV ducts, mainly to process the folding and the Orthogonal Pittsburgh lock forming.
This part is the main differences between auto duct line 3 and auto duct line 2 as duct line 2 does not have folding station.
Main Features

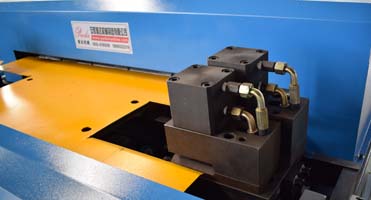

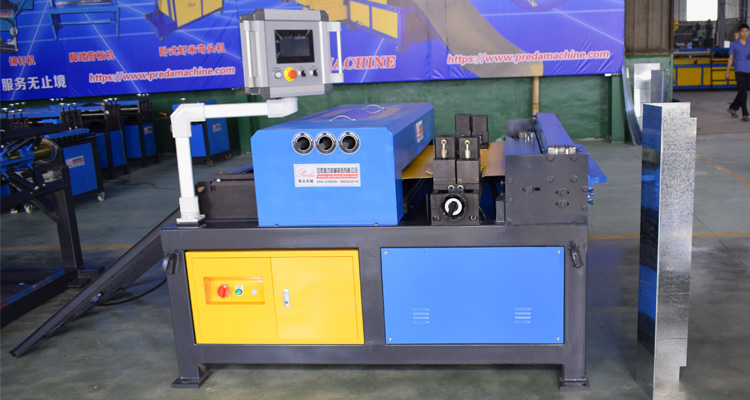

Name: Notching station Material: 9CrSi Features: TDF notching and sharp notching The cut square mouth is used for splicing of two L-shaped plates, and the U-shaped mouth is convenient for flanging after the L-shaped bending of the plate.
This is among basic station of duct auto line!
Machine Parts

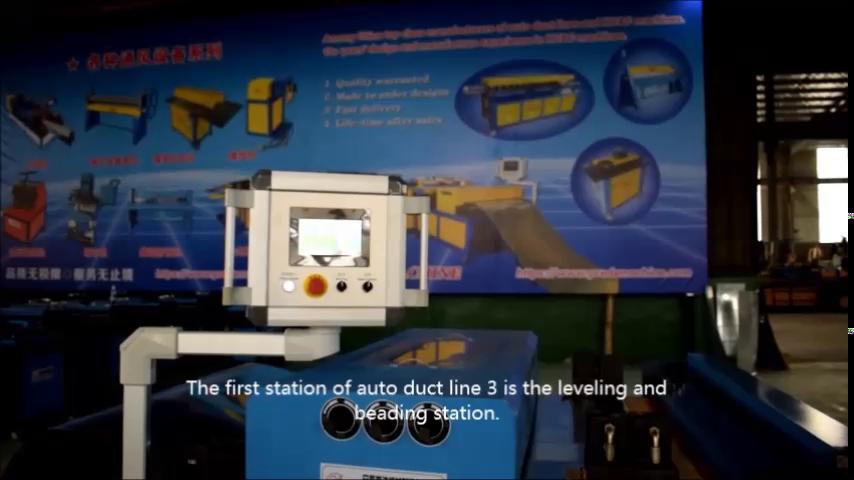

Name: Beader and Leveler Material: SAE4142 Features:Equipped with leveling station before beading station. So that the finished sheet metal and duct are flatter. Totally three leveling rollers are equipped and one beading rollers are equipped to ensure the credibility of this duct production line.
Main Features
Name: Computer screen System:MITSUBISHI We chosed the MITSUBISHI system, the system is stable, and it is recognized by many domestic and foreign customers, and the operation is very convenient. This duct production line computer operators do not take up space.
